Heralded Single photon module (Beta)

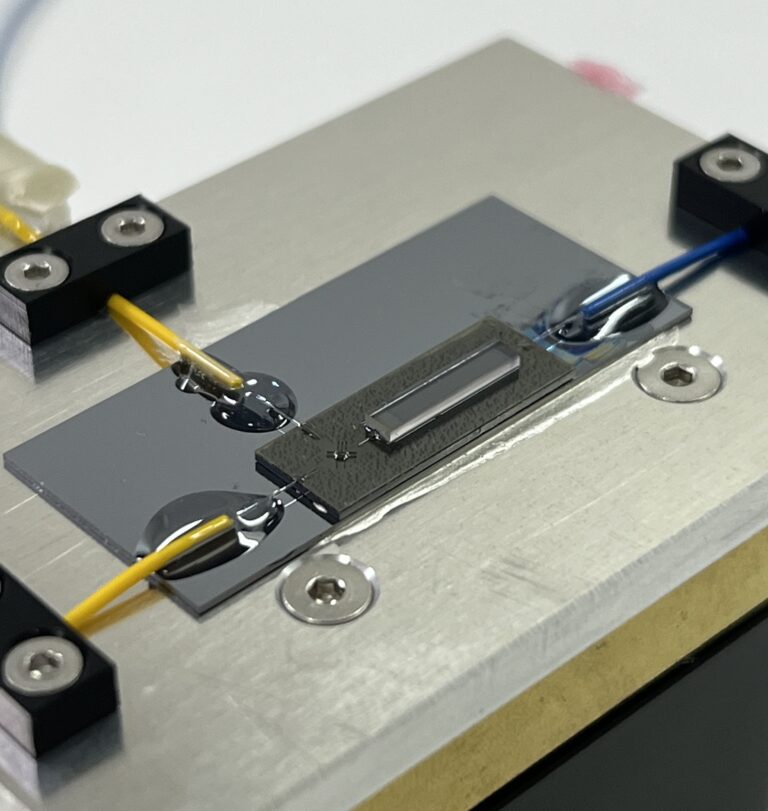

Raicol has integrated its ppKTP crystals into an innovative fiber-coupled platform, suitable for the generation of correlated photon pairs and heralded single photons at telecom wavelengths.
Designed for the SPDC process using Raicol's Type II ppKTP crystals, you can implement a modular, fiber-coupled heralded single-photon source for all your quantum applications.Technical Data
- 10/15mm Type II ppKTP or HP-apKTP

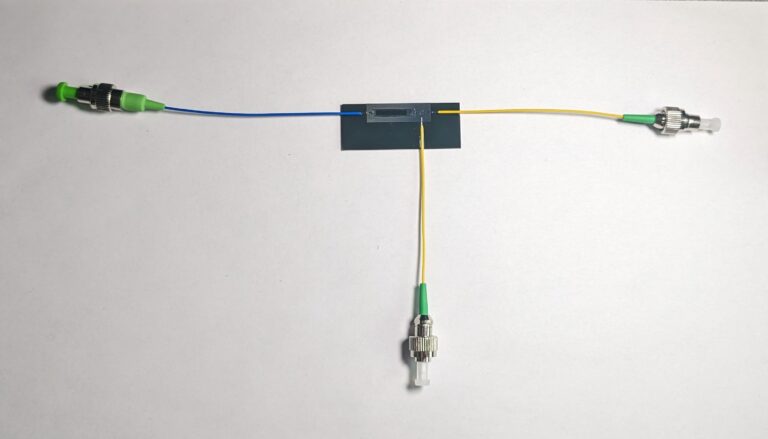

- 775 PM pump input, 2x 1550 SM signal/idler outputs with orthogonal polarizations
- Pump suppression filters
- 80% Coupling efficiency
- Integrated Peltier oven for thermal tuning of the SPDC spectrum
Specifications
Transparency Range
350nm - 4000nm
Aperture
Typical 1mm*2mm
Absorption Coefficient
<20@1064nm
Length
Up to 30 mm
Flatness
λ/6 @633nm
Perpendicularity
<10 arc min.
Laser-Induced Damage Threshold
1,500 MW/ cm² (with coating) @1064 nm, for 10 ns pulses
Parallelism
20 arc sec.
AR Coating
Extra/Intra cavity, AR/AR, AR/HR, DBAR
Scratch/Dig
10/5
Functionality
- SHG
- SPDC
- Squeeze light
- Heralded photons
- Broadband, Type 0 SPDC
- Narrowband, Type 2 SPDC
