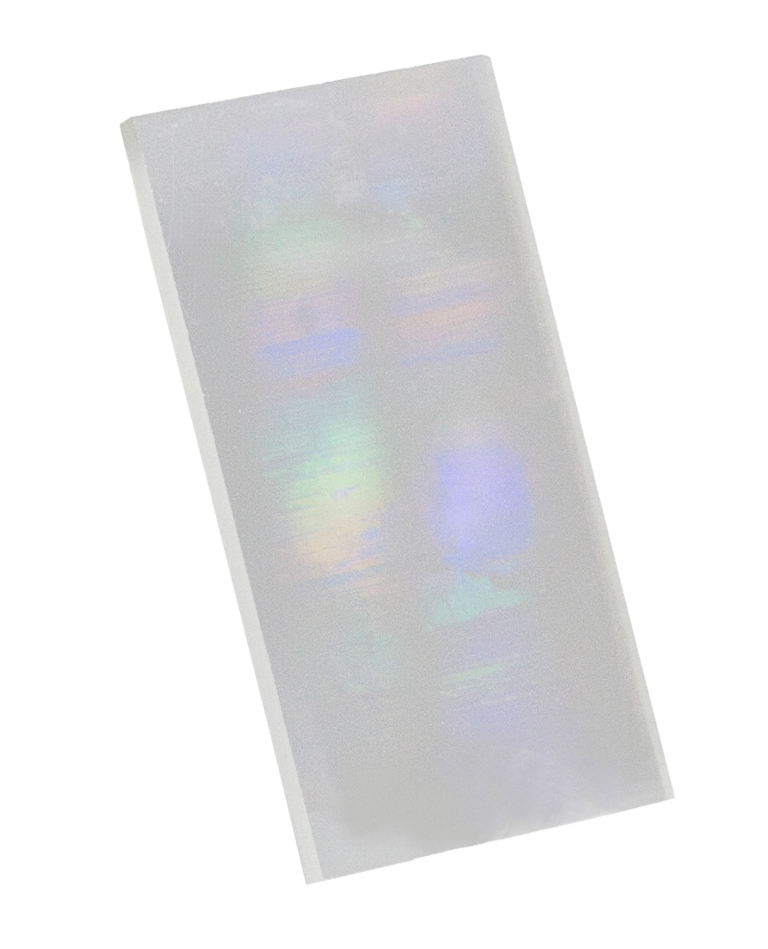

ppSLT Crystal
Periodic Poled SLT (ppSLT) is a leading QPM nonlinear optical material for frequency conversion over a very broad wavelength range from UV to mid-IR.
PPSLT allows efficient frequency conversion for high-power generation in the DUV to MIR spectrum, where other QPM crystals cannot perform. For example, PPSLT supports 10's of watts of green generation. PPSLT's unique features and Raicol's state-of-the-art polling capabilities enable to design of advanced structures such as Fan-Out polling to support tunable wavelength conversion as well as devices that can generate high-power THG on a single device, thus saving space and complicated systems.Technical Data
Periodically Poled Mg Doped Stoichiometric lithium tantalate, LiTaO3
ppSLT is widely recognized for these features:
ppSLT offers a variety of innovative devices and designs:
Fan-out:
- High photorefractive damage resistance
- Nonlinear coefficient (>7.5pm/V)
- High power Green light generation: >10 W
- High thermal conductivity
ppSLT waveguide: Laser-Written waveguide inside ppSLT
- Order of magnitude increase in efficiency
- Watt class frequency conversion
- UV, visible -MIR range
- Circular output beam
- High power and High conversion efficiencies
ppSLT is an OXIDE product.
For more technical information please refer to :
Standard PP-Mg:SLT for 1064nm SHG – OXIDE (opt-oxide.com)
Standard Fan-out PP-Mg:SLT – OXIDE (opt-oxide.com)
Specifications
Aperture
Typical 0.5 mm*2mm
Length
Up to 40 mm
Transparency Range
300 nm -5,000 nm
Note: Above values depends on the device design and periodicity
