Ovens

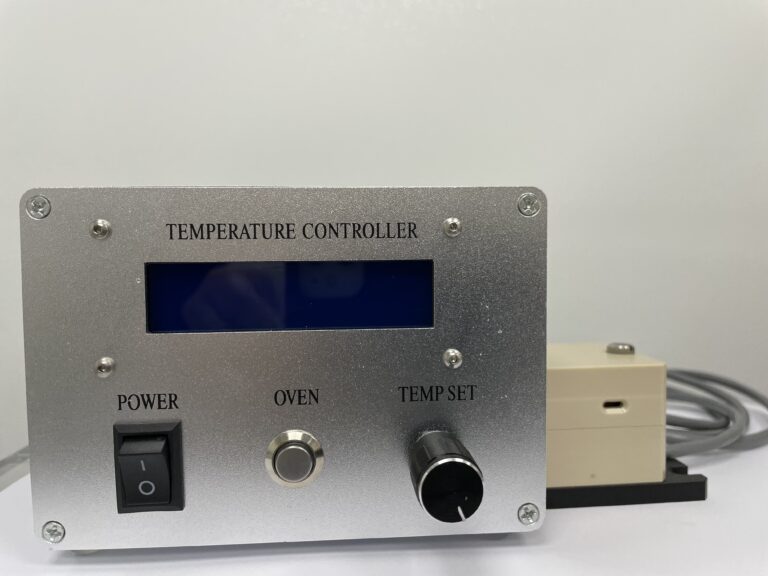

Oven Resistive
The Resistive-based temperature stabilizing oven provides operating temperatures of crystals from room temperature up to 200º C. The temperature controller is a precision instrument that implements Pulse Width Modulation (PWM) control technology to provide accurate temperature control of thermo-electric and resistive heating elements.
Tec Oven Peltier
The Tec Oven Peltier is with the thermo-electric cooler/heater module (non linear crystal mounts) is designed to set and stabilize the temperature of  nonlinear crystals in the range of 20º C to 60º C.
Request a quote

Technical Data

Input power: Wall mount AC/DC convertor 9-24 VDC Maximum Output Current: 10A
Control Temperature Range: 40ºc to 200ºC
Control Stability: +/-0.2ºC
Temperature Sensor: 2-wire Pt1000 RTD (included) TE Cooling module up to 30Watt power
Dimensions (LxWxH) [mm]: 200 x 150 x 85
Control Output: PI regulator (PID), 40 KHz Pulse Width Modulation
