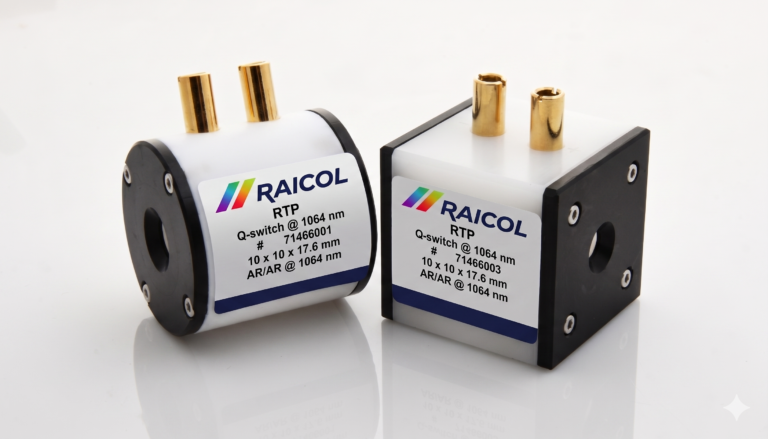

iRTP Pockels cell

 Features:

• Simple alignment – iRTP Pockels Cell requires only 1D alignment to reach optimum extinction ratio.
• Environmental stability- iRTP Pockels Cell is a non-hygroscopic material with a temperature compensation design that allows it to function in non-controlled environments with a variety of temperatures and humidity levels.
• Mechanical robustness and stability – iRTP’s requirement for only 1D alignment means that the iRTP’s package and mount have a simple and more mechanically stable design. The working parameters do not change throughout the laser’s lifetime, or during temperature changes, hence, requires little to no calibration over time..
• High repetition rate – iRTP Pockels Cell supports a repetition rate up to 350 kHz.
• High damage threshold – iRTPs high damage threshold enables its use for high power lasers.
• Standard Pockels cell assembly – iRTP is an off-the-shelf product with standard industry EO cell specifications.
• A simpler laser designs
• Improved stability – as a result of the Pockels Cell’s improved thermal stability, there is no need for thermal
• Less parts – iRTP Pockels Cell doesn’t require an oven or complex 4-axis mount.
• Smaller module footprint – due to less peripherals.
• Pockels cell adjustment – iRTP requires single dimension alignment, which allows a much simpler and faster alignment process, with a better extinction ratio.

• Q Switches
• Pulse pickers
• Phase Modulators
•  Fast Shutter
• Amplitude modulator
• Electro-optic (EO)
• Pockels cell
